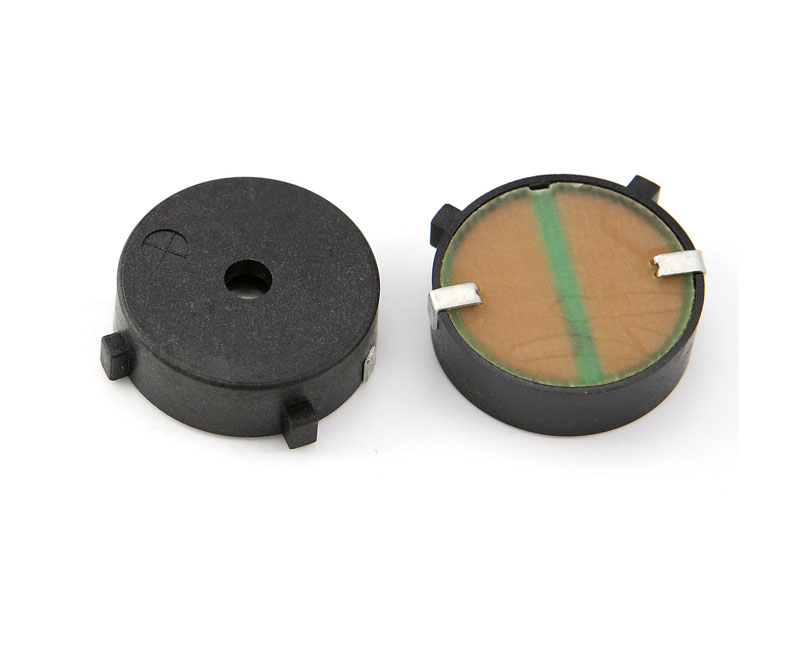

SMD Piezo Transducer iPT2270A
next
SMD Piezo Transducer iPT2270A

  • Product Specifications
  • Inquire Now
Model iPT2270AS-HS-12-4.0-19-R
Rated Voltage 12 Vp-p
Operating Voltage 1~30 Vp-p
Current Consumption ≤12 mA
Capacitance 19000±30% PF
Test distance 10 cm
SPL ≥95dB @10cm
Resonant Frequency 4000±500 Hz
Operating Temperature -30 ~ +85℃
Storage Temperature -40 ~ +90℃
Weight 2.3 g
Carton size 60×36×36 cm
Quantity 3000 pcs
Gross Weight 14.78 Kg
